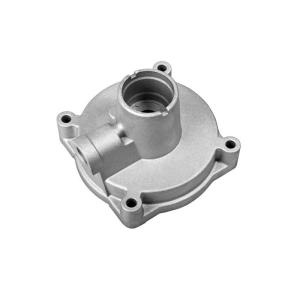

High Pressure Polished AL6061 Al6063 Aluminum Die Casting
Description Of Aluminum Die Casting
| Dimension: | Customized Per Drawing | Material: | Aluminum, Aluminum alloy |
| Tolerance: | +/-0.1mm, Per Request (internal, External, Hole) | Processing Type: | CNC Turning, Drilling, Gravity Die Casting |
| Equipment: | Japan STAR Swiss Type Automatic Lathe | Quality Control: | 100% Critical Dimension Inspection |
| Test Equipment: | Japan Keyence IM7000 | Diameter: | 0.325inch, 0.13inch |
| High Light: | Custom Manufacture aluminum die casting electric motor(OEM ) |
| Product Type: | Customized by drawing (mm/inch) |
| Material: | A380 Aluminum, Aluminum |
| Surface treatment: | Machined, degrease, Anodizing |
| Color: | Natural, color per request |
| Processing: | CNC turning, drilling, Gravity Die Casting |
| Tolerance: | +/-0.1mm |
| Inner Diameter: | 2.7mm |
| Outer Diameter: | 7.6mm |
| Quality control: | 100% inspection before shipment |
| Our company is a professional manufacturer specialized in custom high-precision CNC machining parts. CNC machining parts that are used in the fields such as optical, medical, automation, communication, Machinery, UAV and robotics. Also, we can handle customized complex parts as well. |
| CNC Turning: | φ0.5 - φ300 * 750 mm. | +/-0.005 mm. |
| CNC Milling: | 510 * 1020 * 500 mm(max). | +/-0.005 mm. |
| CNC Stamping: | 1000 * 1000 mm(max). | +/-0.005 mm. |
| Drawing Format: | . IGS .STP .X_T .DXF .DWG. Part .PDF. |
| Test Equipment: | KEYENCE Image Dimension Measuring System, Projector, CMM, Height Gage, Hardness Tester, Salt Spray Tester, Altimeter, Micrometer, Thread Gages, Calipers, Pin Gauge etc. |
| Stainless Steel: | SS201, SS301, SS303, SS304, SS316, SS416 etc. |
| Steel: | Mild steel, Carbon steel, 4140, 4340, Q235, Q345B, 20#, 45#, 17-4 etc. |
| Brass: | HPb63, HPb62, HPb61, HPb59, H59, H68, H80, H90 etc. |
| Copper: | C11000, C12000, C12000, C36000 etc. |
| Aluminum: | AL2014, AL6061, Al6063, AL6082, AL7075, AL5052, A380 etc. |
| Iron: | A36, 45#, 1213, 12L14, 1215 etc. |
| Titanium: | GR2, GR3, GR4, GR5, etc. |
| Plastic: | ABS, PC, PE, POM, Delrin, Nylon, Teflon, PP, PEI, Peek etc. |
| Aluminum: | Clear/color Anodized, Sandblast Anodized, Chemical Film, Brushing, Polishing, Chroming etc |
| Stainless Steel: | Polishing, Passivating, Sandblasting, Laser engraving, PVD Vacuum Plating, Electrophoretic coating etc |
| Steel/Brass: | Zinc/Nickel/Chrome plating, Oxide black, Carburized, Heat treatment, Powder Coated |
| Plastic: | Painting, Chrome plating, Polishing, Sandblast, Laser engraving |
Die Cast Mold Benefits There are numerous advantages regarding the usage of die casting (or HPDC) process. Die Casting, we can provide you with die cast molds that match your design specifications.
* Net shape part configuration is achievable
* High dimensional accuracy is achievable
* Fast production
* Thinner walls are achievable when compared to investment and sand castings
* Wide range of possible shapes
* External threads can be casted
* Steel inserts can be over-molded
* Holes can be cored to internal tap drill size
1. Quick Response: your inquiry will be replied in 24 hours, sales are more than 10 years of engineer background, react fast and give strong support.
2. Competitive Price: we are original manufacturer; low operating cost and innovative ideas enable to offer very competitive cost.
3. One-Step Service: offer from design, machining, surface treatment to finally assembly.
4. Quality Guarantee: Experienced engineers, precision production machines, precision inspection equipment with experienced inspectors and QC system to ensure quality.
5. Production Capacity: 18sets Swiss Machining Lathes and 100sets 3/4/5 Axis CNC machining centers with 500,000pcs monthly of sufficient production capacity enable to meet large demand.
6. On Time Delivery: Sufficient production capacity and strong project management.
7. Good Service: Good service runs throughout the whole process from inquiry/quotation, sampling, production, inspection, packaging to delivery and after sale.
8.Value-added services: A trusted partner who can help you purchase a variety of other legal items, including a variety of special products
Q1: How Can I get a quotation?
A1: Please provide 2D or 3D files or samples. Draw format: IGS, STEP, STP, JPEG, PDF, DWG, DXF, CAD etc.
Q2: What is your MOQ?
A2: Do not have MOQ limited, trial order before mass production is welcomed.
Q3: What about quality control?
A3: Self-inspection in every process by the production operator. Spot inspection and final inspection executed by QC, Defective rate controlled within 2% even lower.
Q4: Can I print my own brand logo on your product?
A4: OEM orders are highly welcome. Please provide the details of your logo, logo position when you send us inquiry.
Q5: Are you manufacturer or trader?
A5: We are a 15years’ experience factory. We try our best to provide competitive price and professional service.
